2KW Hydrogen Fuel Cell for UAV
Category:
Hydrogen Fuel Cell System
E-mail:
Product Details

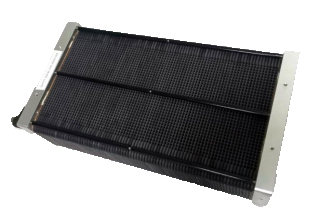

Air Cooled 2KW Hydrogen Fuel Cell Stack for UAV
Characteristics of the Products:
1.Small volume;
2. Low weight for special needs;
3. No polltion
Product parameters
|
|
||||
|
2kw air cooled hydrogen fuel cells parameters |
||||
|
Standard parameters |
Measured parameters |
|||
|
Output performance |
Rated power |
2000W (system 1800W) |
2065W (system 1886W) |
|
|
Rated voltage |
51V |
51.6V |
||
|
Rated current |
39A |
40A |
||
|
DC voltage range |
48V~85V |
51V |
||
|
Efficiency |
≥50% |
≥53% |
||
|
Fuel |
Hydrogen purity |
≥99.99% (CO＜1PPM) |
99.99% |
|
|
Hydrogen pressure |
0.045~0.07MPa |
0.07MPa |
||
|
Hydrogen consumption |
28.5L/min |
28.5L/min |
||
|
Environmental characteristics |
Operating ambient temperature |
-5~35℃ |
29℃ |
|
|
Humidity of working environment |
10%~95% |
35% |
||
|
Humidity of storage environment |
-10℃~50℃ |
|
||
|
Noise |
≤50dB@3m |
|
||
|
Physical parameters |
Bare stack size (CM) |
24.2*14.9*6.9 |
weight |
2.1kg |
|
System size (CM) |
24.2*15.5*22.9 |
weight |
3.7kg (system) |
|
|
Volume power density |
800W/L |
Weight power density |
950W/kg |
|
For reference only, the actual parameters shall be subject to the actual products.
- 2kW polarization curve
